POWER INPUT
电源输入 |
AC- 220+20V
OR AC-110+10V 50-60HZ
TOTAL POWER : <300W
单相交流电220+20V
或110+10V
50-60HZ
总功率：<300W |
|
VOLUME & G.W
体积和毛重 |
Sup-hard-greenpaper
Package：LXWXH=37X31X46CM
G.W 15KG
超硬环保纸箱包装：长X宽X高=37X31X46
CM
毛重：15公斤 |
|
OXYHYDROGEN GAS MADE
氢氧气产量 |
About
55-60L/hour
大约
55-60升/每小时 |
|
ELECTROLYTIC CELL
电解缸 |
Double cell
body，3
+3 layers，Special
stainless still. Total Volume
2000ml.
单缸体，3层，专用不锈钢材料。总容积2000毫升。 |
|
DIGITAL AMMTER
数字电流表 |
If indicating
50-60A Machine is making
oxyhydrogen gas
，working
well.
如果指示50-60A,
机器正在产生氢氧气，工作正常。 |
|
PRESSURE AUTO-CONTROL
气压自动控制 |
Pressure High
Than
0.15mpa Switch off；Low
than
0.09mpa Switch on.
压力控制开关：气压高于0.15mpa
关闭，气压低于0.09mpa自动开启 |
|
GAS BAROMETER
气体压力表 |
Low than
0.15mpa is right and safe, Oil
inside for shockproof.
低于0.15mpa
，机器正常且安全。表内含油是防震作用。 |
|

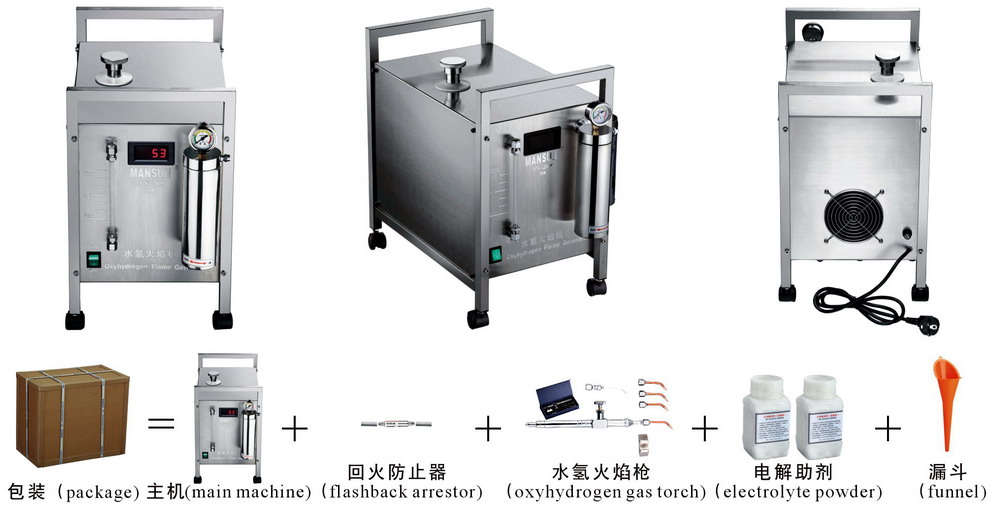

TORCH & NOZZLES
火焰枪以及喷嘴 |
1Torch with
Red copper nozzle A, B, C, D, &
pinhole.
1套枪，带紫铜A,B,C,D,和针头。 |
|
ELECTROLYTE（ALKALI）
电解液(强碱性) |
Must to add
electrolyte at the first time of
use. 500g electrolyte-powder
mixed 2500ml water in a
ovenproof plastic container .
Change electrolyte when dirty or
losing efficacy. 2 offlets in
the bottom for changing.
首次使用必须先加电解液。
500克
电解粉
溶兑2500毫升水。脏或失效时需更换。机器底部有二个放液口。 |
|
CONSUMED FUEL
消耗燃料 |
Water. Only
water，not
add electrolyte again，When
the water level is lower than M
line, please stop machine for
adding water to near high line.
From best to
ordinary are: distilled water，purified
water，cold
boiled water，controlled
water. Clean water is ok，but
not use mineral water.
水，只消耗水。耗水量：约50毫升/小时。开机前加到高水位，8小时加一次水。
不要再加电解液。当水位低于中线时就应停机加水到高线。
水从好到次顺序：蒸馏水、纯净水、凉开水、自来水。水干净就好，忌用矿泉水。 |
|
WORK ENVIRONMENT
工作环境 |
0-50°C,
biggish room or well ventilated.
0-50°C,
较大空间或通风良好的环境。 |
