oxyhydrogen gas torch

MS60A300W
MS70A350W
MS70A-L-450W
MS120A600W
MS120A-L-800W
MS200A1000W
MS200A-L-1200W
MS300A1600W
flashback arrestor
3-N-WAY JIONT
other accessory

电话:0574-88040068

      0574-88040098

传真:0574-88040078

手机:13906689267


MMANSUN

OXYHYDROGEN  FLAME GENERATOR

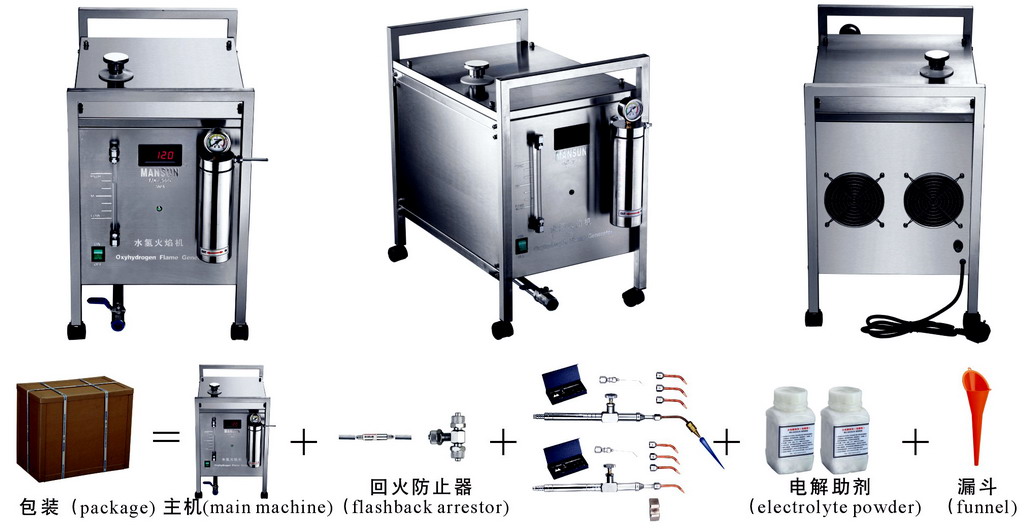

MS-2008-120A-L-800W

MODELMS-2008-120A-L-800W

PRODUCT NAME

WATER  ELECTROLYZED  OXYHYDROGEN  FLAME GENERATOR

OTHER NAME

OXYHYDROGEN GAS MACHINE, WATER WELDING MACHINE,

specialty:

no-carbon oxyhydrogen flame, small flame with high temperature, safe and easy to use, reliable, no-pollution, low cost, etc.



MODEL:MS-2008-120A-L-800W

POWER INPUT

AC- 220+20V  OR  AC-110+10V   50-60HZ  TOTAL POWER : <800W

VOLUME & G.W

Sup-hard-greenpaper PackageLXWXH=58X34X51CM    G.W 25KG

OXYHYDROGEN GAS MADE

About  180-200L/hour .

ELECTROLYTIC  CELL

Double cell body3 +3 layersanode used sup-rotproof meterial.Total Volume 4050ml.

DIGITAL AMMTER

If indicating 120-140A   Machine is making oxyhydrogen gas working well.

PRESSURE AUTO-CONTROL

Pressure High Than 0.15mpa Switch offLow than 0.09mpa Switch on.

GAS BAROMETER

Low than 0.15mpa is right and safe, Oil inside for shockproof.

TORCH & NOZZLES

1-3Torches with Red copper nozzle A, B, C, D, & pinhole. Add 1 big nozzle 0.8mm.

ELECTROLYTEALKALI



Must to add electrolyte at the first time of use.  500g electrolyte-powder mixed 2500ml water in a ovenproof plastic container . Change electrolyte when dirty or losing efficacy. 2  offlets in the bottom for changing.

CONSUMED FUEL

Water. Only waternot add electrolyte againWhen the water level is lower than M line, please stop machine for adding water to near high line.

water consumption :about
